Reverse Engineered. Forward Thinking.
Reverse Engineering Workflow
We make custom parts from a CAD file, a drawing, a sketch, photos or the original part: new parts, improvements to existing ones, and replacements for parts that are worn or hard to source. Every job goes through a test fit in a draft material before the final part is made, so you can confirm the geometry first.
Step-by-Step Production
01

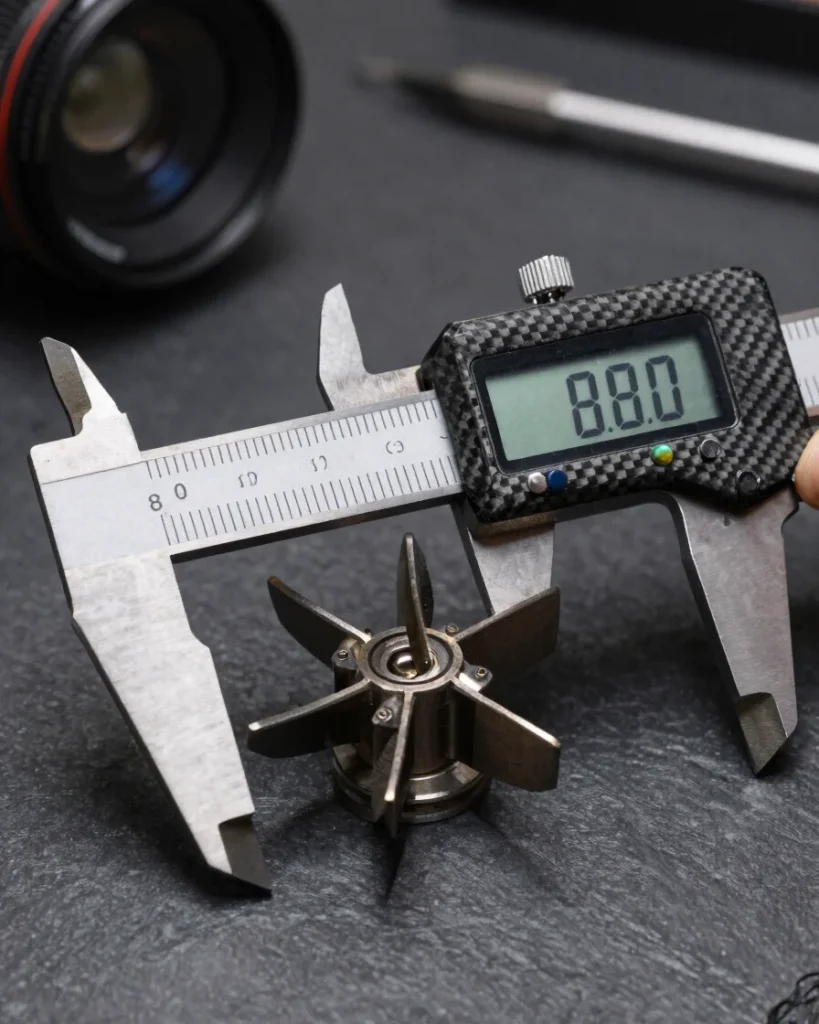

Send photos, drawings, a CAD file, or the physical part. When we have the part in hand, we capture its geometry by 3D scanning, direct measurement, or a combination of both, depending on what the part requires, then rebuild it as a CAD model. Without the part, we work from your drawings and dimensions, or we work with you to make drawings, depending on the application and part fit-up.
02
Before anything is made in the production material, we print a test fit part in a draft material such as PLA, ABS, ASA, or PETG. You check fit-up and geometry in the real assembly, and we adjust the CAD model if needed.
03
Once the fit is confirmed, the part is printed with industrial FFF in an industrial-grade composite such as PA-CF, PPA-CF, PP-CF, or PPS-CF. Turned or milled features are machined in house where needed.
04
Finished parts are checked against the CAD model and approved test fit before they ship.
Project Evaluation
Send a few photos, drawings, or a CAD file, or describe the part. The initial evaluation is free. We review the geometry and how the part is used to tell you whether it is a good candidate for the REV2 production process before you invest anything.
